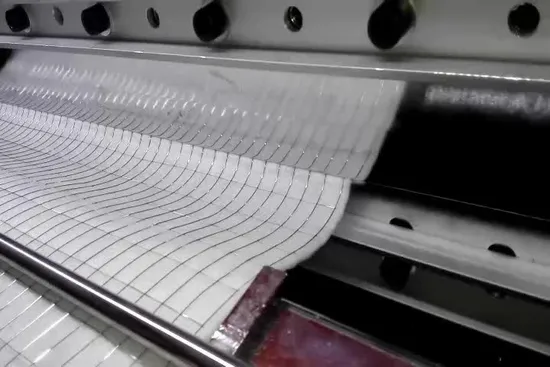

Fabic Blade Pleating Production Line

Basic Info.

Model NO.	HRCZ-600/1050/2000/3000
Working Situations	Dust Collector Filter
Filter Shape	Cartridge Filters
Application	HEPA Air Filter Making
Transport Package	Plywood Case
Specification	1300MM Width
Trademark	HRPuri
Origin	China
HS Code	8451500000
Production Capacity	20

Product Description

Blade Pleating Production Line
Model: HRCZ-600/1050/2000/3000 (Following Data refers to 1050)

Main equipment included: 1, Auto paper de-coiler 2, Pre-slitting & conveyor 3, Pleating imprint puncher 4, Pleat automatic counter & Marker 5, Pleating machine (Equipped with heater, Touch screen & Electric controller)
Technical data:
Pre-slitter Speed: 0~12M/Min (Continuously Adjustable) Paper width: 32~1000MM Power: 0.75KW/220V/50Hz Working air pressure:0.6Mpa M/C Weight: 350KG M/C Sizes: 150*130*110 (CM)	Pleating imprint puncher Paper width: 1000MM (Max) Marking distance: 8~55MM adjustable Power: 0.75KW/380V/50Hz M/C Weight: 400KG M/c: sizes: 155*75*110 (CM)	Pleating Machine Paper width: 1000MM (Max) Pleating height:8~55MM adjustable Efficiency: 0~200Pleats/Min adjustable Motor Power: 1.5KW Heating Power: 5KW Heating temperature: <=200°C Working air pressure: 0.6Mpa M/C Weight: 650KG M/C Sizes: 167*172*140 (CM)
Features: 1,The pre-Slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. It is simple operated but smooth and effective. After slitting the paper, the conveyor for feeding the filter paper runs in synchronism with the marking machine by equipping the infrared monitoring system. 2,The marking machine can mark in different pleat sizes, the marking distance can be set freely by the computer screen, and accurately marking distance will be appeared with the step motor loading. 3,The pleater uses upper and lower blades to alternately finish the folding, then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance. 4,After marking, the filter paper will be pleated and pre-heated. 5,The machine is also suitable for folding the iron wire fabric and non-woven fabric of the hydraulic filter, even the multilayer folding.

The production line is applied to dust collector, automotive, hydraulic & water purifying filter making industries, etc.
Accept customize for different specifications (machine wider and pleat higher)
